What formats can I use?

Clay is sustainable

Clay is the foundation of a sustainable future, because it creates spaces for well-being.
With our perforated clay block, we want to create an affordable building material suitable for large-scale use and industrial manufacture which, as a purely natural product made of 100 per cent clay, also meets the highest sustainability requirements.

Industrial production

We used traditional masonry brick formats in shaping our products, which is why they can be processed just as efficiently and quickly. Clay blocks can be used for non-load-bearing internal walls as well as for load-bearing internal and external walls.

"The seemingly ancient building material that is clay can be used for much wider areas of application due to its modern production and design. A very exciting development begins here."

Prof. Dr.-Ing. Detleff Schermer

OTH Regensburg, Faculty of Civil Engineering

Current formats

Below you will find the current formats of the new product. As with all our product groups, we respond to explicit customer requests, so alternative formats can also be produced to order. The data sheet for our clay block can be found in the download portal.

LZ11

for non-load-bearing walls

length:

372 mm

width:

115 mm

height:

249 mm

Compressive strength:

5

Pallet contents:

80

kg/pallet:

890

Requirements per m²:

11

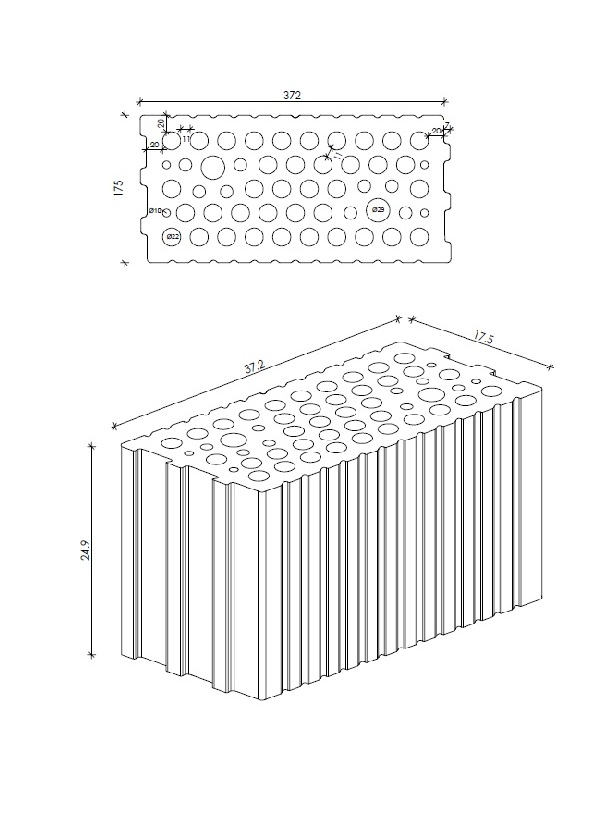

LZ17

for non-load-bearing walls

length:

372 mm

width:

175 mm

height:

249 mm

Compressive strength:

5

Pallet contents:

48

kg/pallet:

790

Requirements per m²:

11

LZ24

for load-bearing interior and exterior walls

length:

307 mm

width:

240 mm

height:

249 mm

Compressive strength:

5

Pallet contents:

36

kg/pallet:

815

Requirements per m²:

13

LZ30

for load-bearing interior and exterior walls

length:

247 mm

width:

300 mm

height:

249 mm

Compressive strength:

5

Pallet contents:

45

kg/pallet:

815

Requirements per m²:

16

For detailed questions and personal advice on planned projects, please contact us by email at info@gima-lehmziegel.de.
